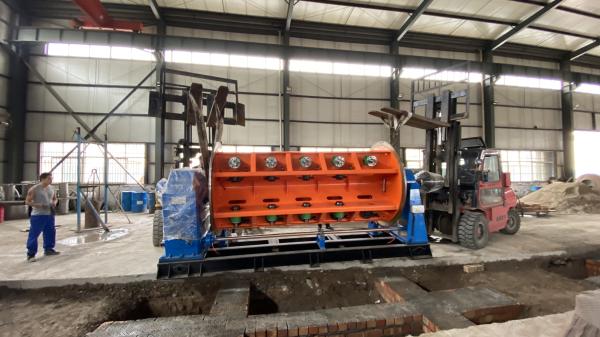

500/54 Spool Rigid Stranding Machine With Turn Key Service

Brand Name : BEYDE

Model Number : 500

Place of Origin : China

MOQ : 1 set

Payment Terms : T/T

Supply Ability : 200 Set/Year

Delivery Time : 90 Days

Packaging Details : Container

Usage : Stranding

Color : Customized

Name : Rigid Frame Wire cable Stranding Machine

Application : Making Cable

Contact Now

500/54 Spool Rigid Strander Line With Turn Key Service

APPLICATION 1:
The Rigid Strander/Cabler is suitable for the concentric assembly of: Stranded conductors for low, medium and high voltage
applications, Cabling insulated conductors for control cables, Screened power cables and Steel wire armouring.

APPLICATION 2:
Round compacted function；
Prespiralled sector cores for Milliken;
Overhead conductors (AAC, ACSR, AAAC, ACCC, ACSS…);
Steel wire armouring;
Copper wire screening;
Flexible Class 5;
Control Cable.

500/54 Spool Rigid Stranding Machine With Turn Key Service

Characteristics
1.After technical transformation and optimization design, the speed of the winch box has been increased by more than 15%, and its technical performance has been greatly improved.
2.It is suitable for the untwisting of copper conductor, aluminum conductor and ACSR, as well as insulated wire and strand. Equipped with roller, also suitable for stranded round, semi-circular, fan-shaped copper or aluminum conductor.
3.It is applicable to PND 500 type bobbin, equipped with suspender and electric hoist to load and unload bobbin respectively or side bottom loader to load and unload bobbin together.
4. equal positions on the circumference of the stranding cage are respectively loaded with the bobbin to facilitate loading and unloading. The machine has high rigidity, good integrity, small moment of inertia and fast running speed.
