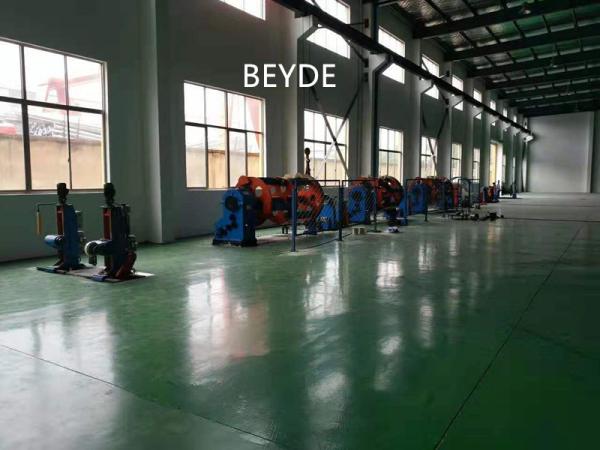

High Precision Double Twist Buncher Cable / Wire Strander Machine 188~419r /Min Speed

Brand Name : BEYDE

Model Number : 630

Place of Origin : CHINA

MOQ : 1 SET

Payment Terms : L/C, T/T

Supply Ability : 200 SET/YEAR

Delivery Time : 90 DAYS

Packaging Details : CONTAINER

Usage : Stranding,Twisting

Color : Customized

Application : Cable Making Industry,Metal wire,Al wire,Steel Wire Rope

Name : Planetary stranding machine,wire planetary stranded machine,Cable Making Equipment Planetary Type Cable Stranding Machine,cradle type Cabling machine,Stranding Machine/drawbench

Voltage : 380V

Wire material : copper or al,Steel Wire,conductor or insulated wire

Warranty : 12 Months

Stranding pitch : Step-less,adjustable

Taping head : 500

Plc : Siemens,optional

Optional : Magnetic hysteresis

Contact Now

H-speed double twist buncher Cable & Wire Strander Machine 188~419r /min Planetary Twister

JL-1+6+12+18-PND500

  1. Use

This equipment is mainly used for lay-up of insulated core wires such as control cables, signal cables, and small-sized plastic cables.

  1. The main technical parameters
2.1

Single wire diameter

 Copper 1.35~5.0 mm
AL 1.8~5.0 mm
Insulated core 12mm
2.2

Strand cage rotation speed

 37~88r /min
2.3

Traction line speed range

 3.67~27.2 m/min
2.4

Strand wire pitch range

 42~732mm
2.5

Taping head rotation speed range

 188~419r /min
2.6

Taping pitch range

 8.7~144.3mm
2.7

[ay-off bobbin size in cage

 PND500(Ø500×Ø125×375)
2.8

Take-up bobbin size

 PN2500
2.9

Main motor power

 N=45kW(AC)
2.10

Take-up motor torque

 M=60N·m
2.11

Machine central height

 1000mm
  1. Main Component
3.1

PND500 Pay-off frame

 1 set
3.2

PND500 main strand cage

 1 set
3.3

Assembling die holder

 3 set
3.4

Non-metal Taping device

 1 set
3.5

Meter counter

 1 set
3.6

φ1600 traction device

 1 set
3.7

φ2500 end-shaft take-up and traverse frame

 1 set
3.8

Mechanical transmission system

 1 set
3.9

Electrical control system

 1 set
3.10

Operation termial (cabinet type)

 1 set
3.11

Safety protection cover (wall fence)

 1 set
  1. Structural description and technical parameters of each main component

4.1 φPND500 Pay-off frame

4.1.1

Pay-off bobbin size

 PN/PND500
