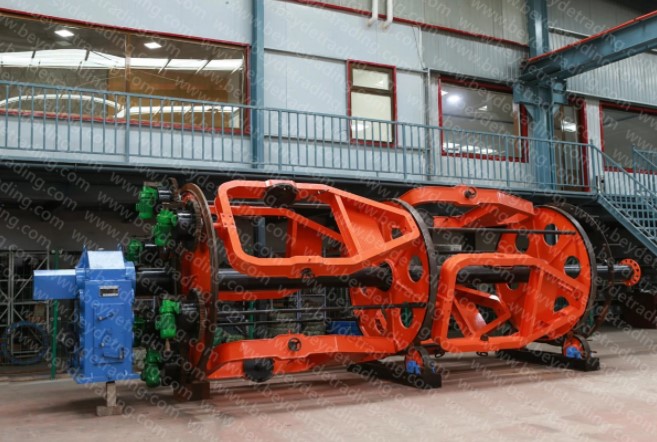

30~50r/Min Fast Rotating Speed Wire Cable Making Machine , Drum Twister Machine
1. Application
The machine is used for strand and lay-up large section, longer round, straight sector and pre-spiral sector power cables. It can strand and lay-up the pre-spiral and non-pre-spiral cable core..
2. Type
Pay-off stand
Φ1000, Φ1250, Φ1600, Φ2000, Φ2200, Φ2500, Φ2800, Φ3000, Φ3150, Φ3500
Take-up stand
Φ1600, Φ1800, Φ2000, Φ2200, Φ2500, Φ2800, Φ3000, Φ3150, Φ3500, Φ4000, Φ4200
Steel-wire pay-off stand
Φ500, Φ630
3. Main Technical Specification
| Model | CLJ-2500 | CLJ-3150 | CLJ-3600 |
| Max. laying-up OD | Φ20 –Φ120 | Φ25 –Φ130 | Φ25 –Φ130 |
| Max. rotating speed of rum twister and pay-off stand | 50 | 30 | 30 |
| Laying-up pitch | Step-less, adjustable | Step-less, adjustable | Step-less, adjustable |
| Max. linear speed | 50 | 40 | 40 |
| Max. haul-off force | Standard | 3000 | 3000 | 3000 |
| With 96pcs steel wire armoring | 5000 | 6000 | 6000 |
| Non-metallic taping device | Max. speed | 500 | 500 | 500 |
| Taping pitch | Step-less, adjustable | Step-less, adjustable | Step-less, adjustable |
| Tape reel | Φ600 xΦ80 | Φ600 xΦ80 | Φ600 xΦ80 |
| Tape width | 15 - 80 | 15 – 80 | 15 - 80 |
| Metallic taping device | Max. speed | 300 | 300 | 300 |
| Taping pitch | Step-less, adjustable | Step-less, adjustable | Step-less, adjustable |
| Tape reel | Φ800 xΦ200 | Φ800 xΦ200 | Φ800 xΦ200 |
| Steel tape width | 15 - 60 | 15 - 60 | 15 - 60 |
| Central pay-off stand | PN2500 | PN3150 | PN3600 |
| Pay-off stand | PN1600 | PN2000 | PN2500 |
| Take-up drum head size | PN2500 | PN3150 | PN3600 |
| Steel wire armoring specification | PND500 | PND630 | PND630 |
| Main motor power | 45 | 55 | 75 |
| Central payoff stand motor power | 22 | 45 | 55 |
