High Speed 1250mm Cantilever Single Twisting(Cabling) Machine
Application:
It is suitable for various power wire, CAT 5 and CAT 6 and 7 data cable, communication cable and other special high speed molding twist, meanwhile, and it can wrap foil and mica tape, and special for making unilay wires.
Our single twisting machines are designed for stranding insulated conductors with or without inner winding for the production of data cables and special cables. Our single twisting machines are tailor-made for specific cable production according to customer requirements. Please ask for our reel diameter model. 500 – 630 – 800 – 1000 and 1250 mm.
We are proud to claim that our single winches are the absolute benchmark in the Chinese market due to their high production speed and finished product quality, but also due to their longer service life, easy maintenance and user-friendliness! The short time required to load and unload spools or reels is a real advantage.
For single layer stranding of control cables, a cantilever single twister is the best choice for your needs. It is also widely used for Ethernet cable four-pair routing as well as filler and foil tapping.
| Model | DJJ500 | DJJ630 | DJJ800 | DJJ1000 | DJJ1250 |
| Take-up bobbin | 500mm | 630mm | 800mm | 1000mm | 1250mm |
| Pay-off bobbin | 400-500mm | 500-630 mm |
| Inlet wire diam (mm) | 0.4-2.0 | 0.6-3.0 | 0.6-4.5 | 0.8-5.5 | 1.0-6.0 |
| Twisted cable diam(mm) | 4 | 8 | 15 | 20 | 30 |
| Rotation(RPM) | 1600 | 1200 | 800 | 600 | 500 |
| Motor | Main drive | 10 HP | 15 HP | 20 HP | 30 HP | 50 HP |
| Take-up | 5 HP | 5 HP | 10 HP | 10 HP | 15 HP |
| Traverse | 1 HP | 1 HP | 2 HP | 2 HP | 4 HP |
| Brake system | Pneumatic Air brake |
| Tapping set | longitudinal tapping unit or straight tapping unit as required,option of yarn filler |
| Direction | S / Z |
| Remarks | No.of Pay-offs are customized according to customer demands. |
Equipment characteristic :
1. stable lay pitch.
2. Steady tension suitable for high quality cable
3. Friendly interface,PLC touch screen setting.
4. All standard parts taken original imported
Main components of single twist machine:
Active/Passive Pay-off
Guide Assembly platform
Tapping unit(optional)
Yarn filler plate(optional)
Single twist machine
PLC control cabinet
Product Tags:
|
|

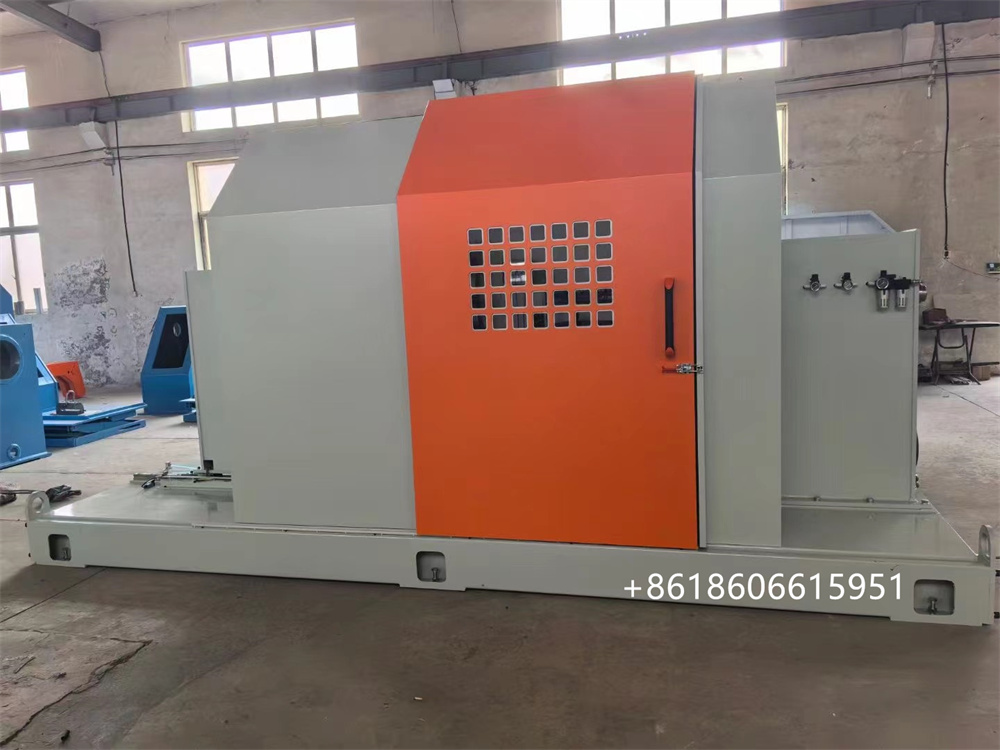

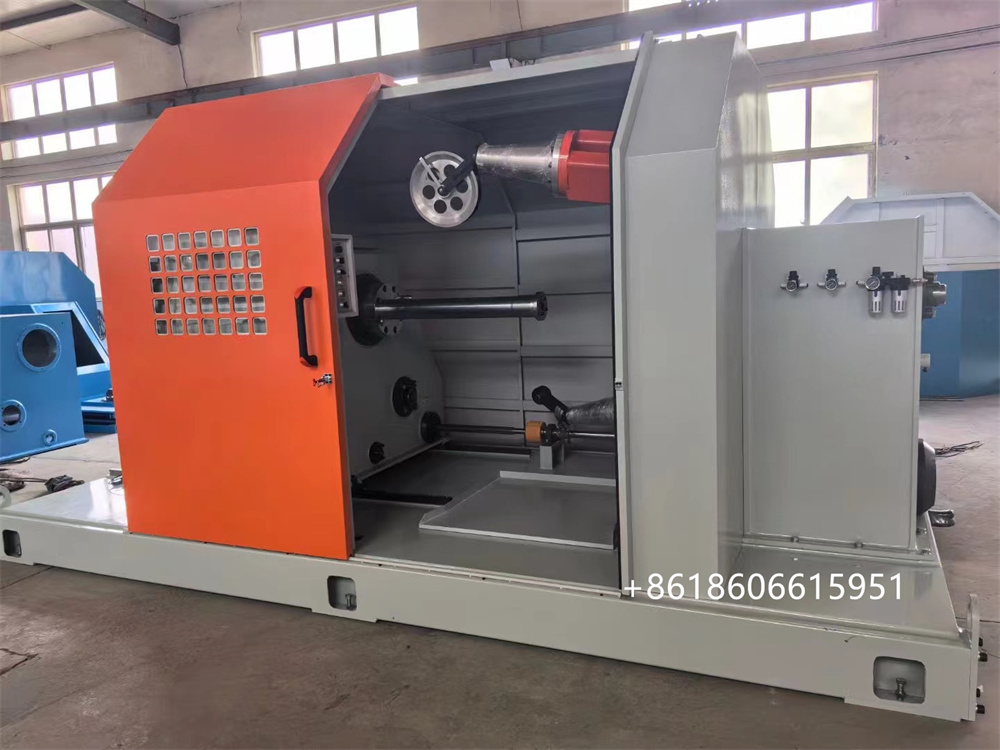

High Speed 1250mm Cantilever Single Twisting Cabling Machine Images
|
