Large Size Cables Electrical Power Copper Wire Cable Stranding Making Underground Laying Up Machine

  • 1
  • 2

Brand Name : Beyde

Model Number : 1250/1+4

Place of Origin : Hebei, China

MOQ : 1 set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 set/year

Delivery Time : 90 days

Packaging Details : Safety protection package for sea freight.

Usage : Stranding

Color : customized

Warranty : 24 Months after installation

Wire material : Insulation PVC wire

Wire range : 6-30mm

Wire size : upto 300mm2

Stranding pitch : Stepless adjust on PLC

Speed : 50r/min

Taping unit : non-metallic and metallic

Taping pitch : Stepless adjust

Taping Speed : 650r/min

Linear speed : 37 m/min

Stranding direction : S or Z

Cable : Sector or round cable

Contact Now

Large Size Cables Electrical Power Copper Wire Cable Stranding Making Underground Laying up Machine

This machine is widely used in the various sections of the three core, four core, five core plastic power cables, XLPE cable (cross-linked polyethylene cable) and armored cable. The shape of the wire core can be round-shaped, fan-shaped and W-shaped.
Model Main Specification CLY800 CLY1000 CLY1250 CLY1400 CLY1600
Single Wire Diameter 5mm-15mm 6mm-22mm 6mm-25mm 6mm-30mm 6mm-45mm
Max Stranded Diameter 45mm 50mm 60mm 70mm 100mm
Stranding Pitch 50-1500mm 80-2900mm 120-4900mm 240-4200mm 440-7600mm
Cage Rotate Speed 60RPM 25RPM 21RPM 15RPM 9RPM
Max Line Speed 36m/min 32m/min 38m/min 29m/min 32m/min
Pay Off Drum Size In Cage PN800 PN1000 PN1250 PN1400 PN1600
Central Pay Off Drum Size PN800 PN1000 PN1250 PN1400 PN1600
Take Up Drum Size PN800-1600 PN1000-2000 PN1000-2000 PN1250-2500 PN1600-3150

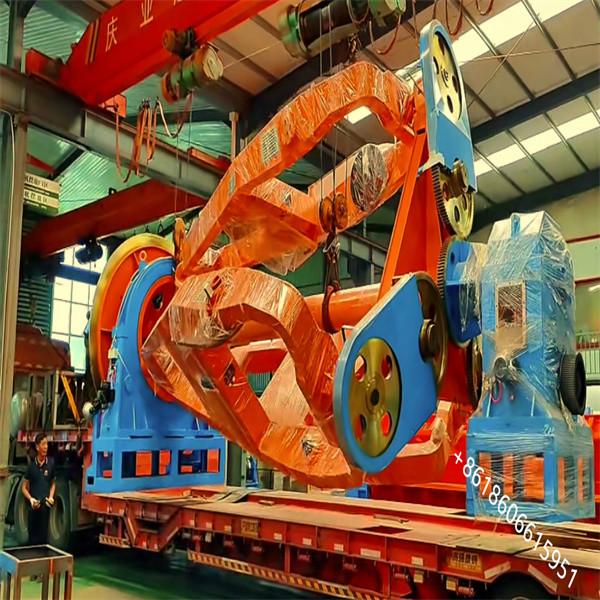

Large Size Cables Electrical Power Copper Wire Cable Stranding Making Underground Laying Up MachineLarge Size Cables Electrical Power Copper Wire Cable Stranding Making Underground Laying Up Machine

Application :

The machine is suitable for stranding and lay-up various sizes and various specifications of 3-7 cores. This is mainly used for power cables,insulated cores, which can be round or sector.

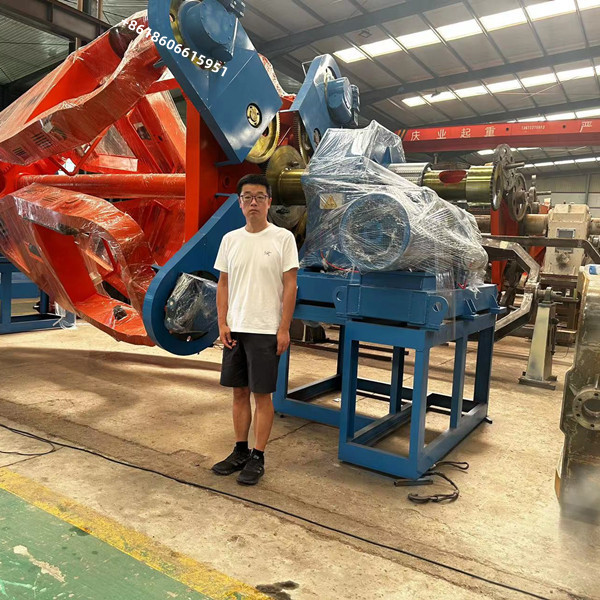

Large Size Cables Electrical Power Copper Wire Cable Stranding Making Underground Laying Up Machine

Large Size Cables Electrical Power Copper Wire Cable Stranding Making Underground Laying Up Machine

Services we provide:


1.Pre-sales training: in order to ensure the correct operation of the machine, we can provide customers with professional operation training if needed, including
1) correct operation method
2) correct maintenance method
3) solve simple problems of our products

2.During the period of service:Each machine is to be inspected internally and by the buyer himself before shipment. As for machine production, we have our strict product checkout process. We will mark the name of each device. Those devices must be signed to guarantee quality before being sent to our customer's factory,which ensuring the good condition of our products.

3.After-sales service:Since the date of shipment, our company's free after-sales service during the warranty period is as follows
1)1 year for mechanical part
2)12-15 months for electrical part
3)Offer lifetime consultation on problems occurred
